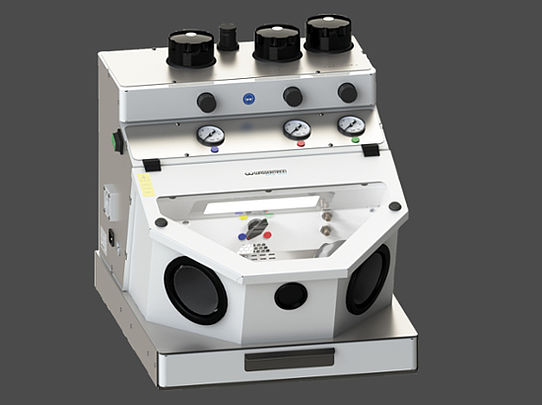

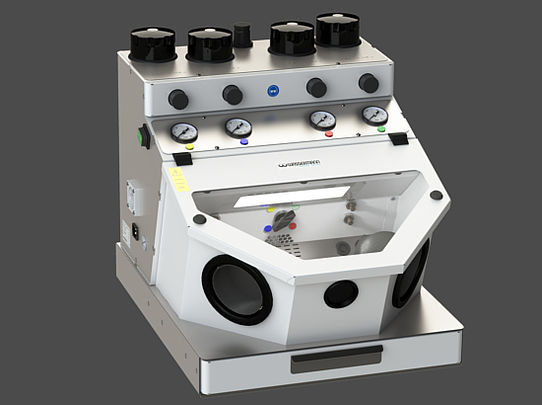

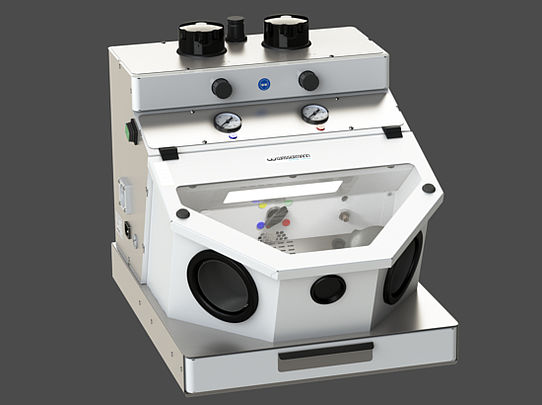

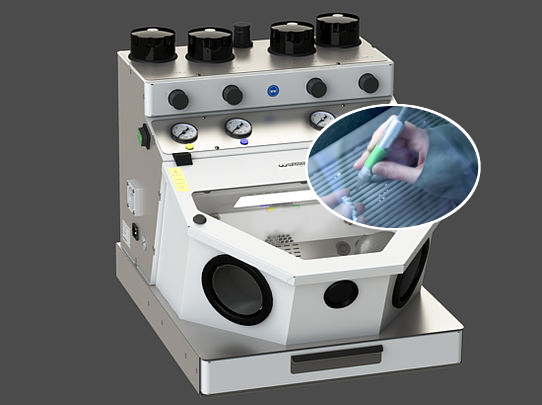

Fine Blasting Unit Cemat-4 II/ -3 II/ -2 II (NEW)

First-class work results are guaranteed by using the extra efficient precision fine blasting units of the Cemat series. These fine blasting specialists equipped with either 2, 3 or 4 full metal blasting material tanks combine everything that can be desired of an unit of this quality - highest comfort included!

NEW: 190984/ ...3/ ...2

Range of application:

Whether sand-blasting, roughening or polishing: Details such as the colour coding system or the optimum workspace illumination by a protected fluorescent lamp make it easy to work. The entire system is under pressure constantly and is ready for operation immediately. The unit operate extra accurately and convenient thanks to the individually adjustable pressure control per chamber.

Major features at a glance:

  • Extra efficient, comfortable and flexible: Multifunctional fine blasting units with 2, 3 or 4 full metal chambers

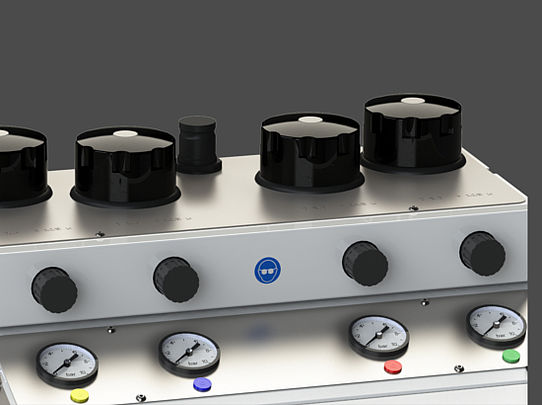

  • Individually adjustable pressure control per chamber
  • Precise working pressure of 0.8–6 bar with pressure gauge control
  • Additionally flow rate control: Adjustable blasting material consumption
  • Genuine quick start/stop function, cost savings thanks to noticeable low consumption of blasting material
  • Permanent pressure system: Prevents contamination and moisture of blasting material

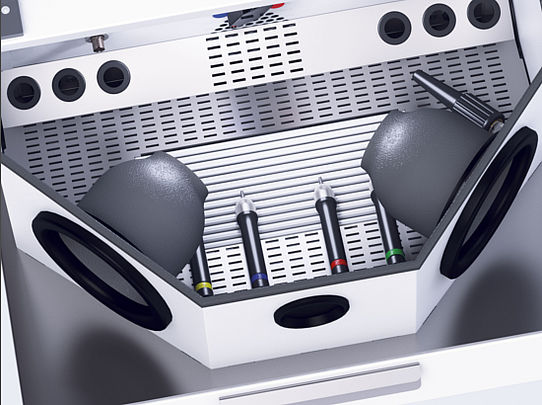

  • Comfortably to handle with ergonomically shaped handpieces
  • With handy air blasting nozzle for easy cleaning
  • Easy foot-controlled operation
  • Rapid ventilation of the high quality blasting material containers made of metal for rapid re-filling and changing of blasting material
  • Sand drawer for catching coarse of materials to relieve filters
  • Special particularly durable hoses
  • High hygiene standard because of changeable sleeves
  • Convenient colour coding system
  • Easy choise of the desired blasting material by using the selection switch for colour circuit settings
  • Specially coated safety screen for ideal visibility
  • Optimum workspace illumination, protected LED lamp
  • Blasting material tanks made of metal, high quality construction
  • Designed for long durability
  • Simple cleaning due to stay-clean surfaces: High quality stainless steel and robust plastic powder coating
  • Air inlet membrane: If needed cut in the rubber vertically and horizontally to achieve an optimum exhaust air stream into the vent of the connected suction unit
  • With plug socket (power consumption max. 8 A), e.g. for a suction unit
  • Connection option for a suction unit: Extractor nozzle Ø 75 mm exterior
    Available as accessories:
    • Extractor nozzle Ø 40 mm exterior (Item no. 143385)
    • Extractor nozzle Ø 50 mm exterior (Item no. 190286)

Tip: We recommend the use of Wassermann blasting materials and our low-pressure suction units SG-1/1 and SG-10.



Included in delivery:

  • Compressed air hose (PVC hose Ø 8x6 textile, blue) 2 m
  • Supply line
    Delivered as standard: Supply line 3 core with angle plug (Item no. 592012)
    Delivered only on request*: Supply line 3 core US 13 A (Item no. 592011)
    *Please just give us a short notice when you place your order.
  • Cemat-4 II including 4 fine blasting jets 0.6 (yellow), 0.8 (blue), 1.2 (red), 0.8 (green)
  • Cemat-3 II including 3 fine blasting jets 0.8 (blue), 1.2 (red), 0.8 (green)
  • Cemat-2 II including 2 fine blasting jets 0.8 (blue), 1.2 (red)
Technical Specifications:

Voltage

100–240 V / 50/60 Hz

Power consumption

0.2 A

Plug socket power consumption max.

8 A

Output

50 W

W x H x D

445 x 460 x 620 mm

Weight (Cemat-4 II)

28 kg

Weight (Cemat-3 II)

26 kg

Weight (Cemat-2 II)

24 kg

Sound level

≤ 70 dB (A)

Tank capacity

560 cm3

Compressed air connection

3-6 bar

Working pressure

0.8-6 bar

Extractor nozzle

Ø 75 mm exterior



For spare parts / accessories store:

article number 190984 : Fine Blasting Unit Cemat-4 II
article number 190983 : Fine Blasting Unit Cemat-3 II
article number 190982 : Fine Blasting Unit Cemat-2 II

Example of an identification plate at your device
Type = item number
S/N = serial number
The serial number allows us to find quickly without any doubt the correct answers for the needs of your machine. The identification plate is located on the back or right side of your unit.
